Electric Hob 90 cm
Technical Overview
Built-in / Free-standing
Built-in
Main colour of product
Black
Booster function
rear left cooking zone, front left cooking zone
Dimensions (HxWxD)
49 x 908 x 520 mm
Handling
touchSlider (mono)
Home Connect
No
Special Features
Sturdy stainless steel frame
Frying sensor function
Three-ring cooking zone up to 27 cm
Large roasting zone
Sensor control with direct selection of output level
Specifications
Sturdy stainless steel frame
Frying sensor function
Three-ring cooking zone up to 27 cm
Large roasting zone
Sensor control with direct selection of output level
2 Super-Quick cooking zones ø 18 cm (1800 W); together they convert to 18 x 41.5 cm (4400 W) roasting zone.
1 Super-Quick cooking zone ø 12 cm (750 W), converts to ø 21 cm (2100 W, with booster 2600 W) cooking zone.
1 Super-Quick cooking zone ø 14.5 cm (1050 W), converts to ø 21 cm (2200 W) or ø 27 cm (3080 W) cooking zone.
1 Super-Quick cooking zone ø 14.5 cm (1200 W, with booster 1600 W).
Sensor control with direct selection of ouput level.
Cooking zone marking.
Electronic power control in Variable 17-stage power settings for each zone.
Frying sensor function for ø 21 cm cooking zone.
Booster function.
Cooking timer for up to 99 minutes.
Short-term timer.
Options menu.
Main switch.
Operation indicator.
2 stage Hh residual heat indicator for each zone
Child lock.
Safety shut-off.

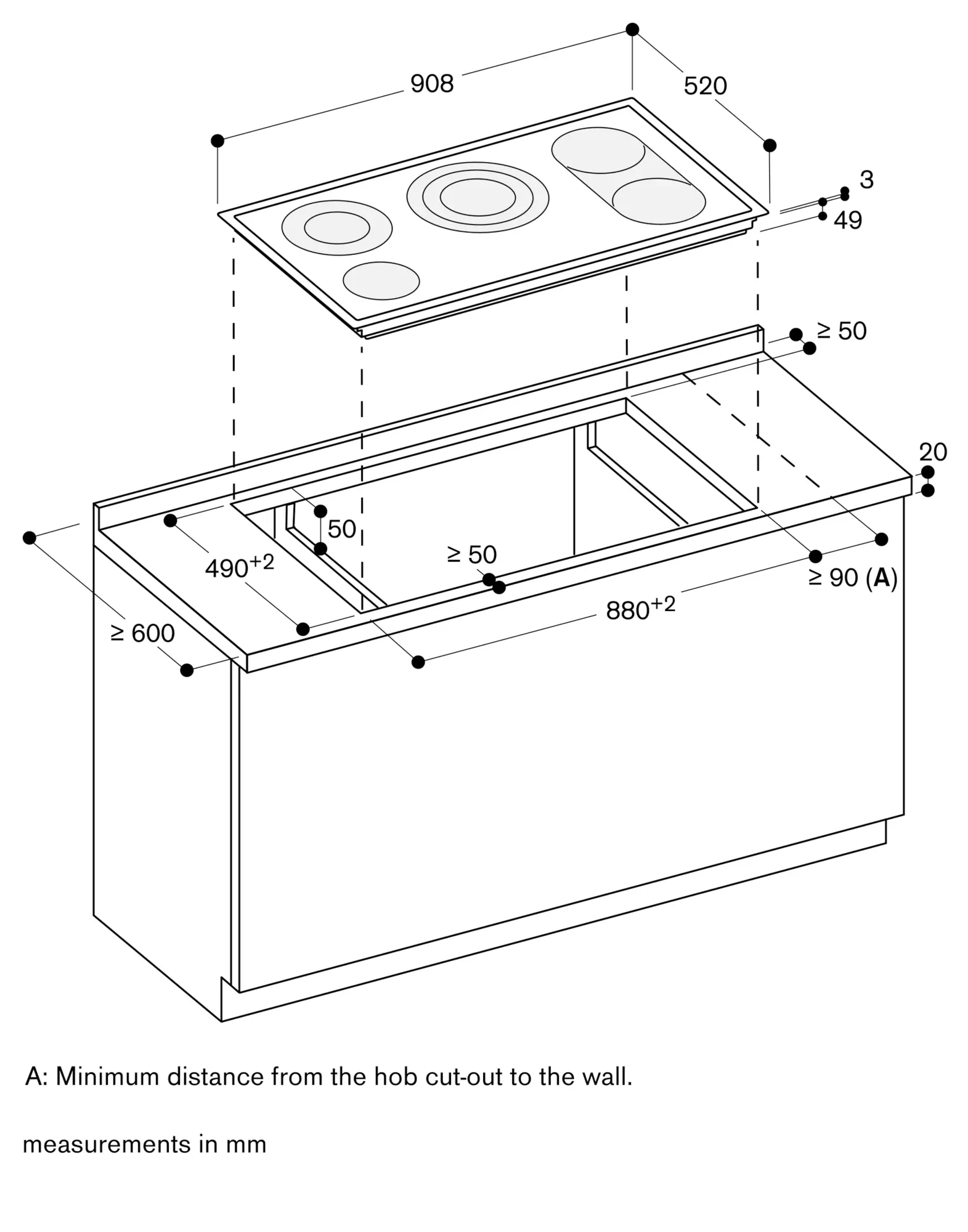

Immersion depth 49 mm, depth at plug socket 50 mm.
Under the plug socket, a 10 mm clearance must be observed from side panels or from intermediate shelf.
The cooktop must be freely accessible from underneath to be able to detach the cooktop´s base in a downward direction.
Installation possible in a 60 cm wide lower cabinet.
Appliance must be fixed from underneath.
Cooktop clamping range: 20 - 50 mm.
Appliance weight: approx. 13.
Total connected load 11.0 KW.
Plan a connection cable.
