200 series Vario gas cooktop 28 cm Liquidgas G30,31 28-30/37 mbarVG231120F
1 / 7
200 series Vario gas cooktop 28 cm Liquidgas G30,31 28-30/37 mbarVG231120F
Find a local Dealer
Technical Overview
Cooktop type
Gas cooktop
Number of cooking zones
1
Wok burner
Yes
Gas type
Liquidgas G30,31 28-30/37 mbar
9 precise power levels
Yes
Material of pan supports
Cast iron
Home Connect
No
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Control panel for comfortable and secure operation
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Multi-ring burner of solid, heat-resistant brass as used in professional kitchen
Total output up to 5.8 KW
1 multi-ring wok burner (300 W – 5800 W), suitable for pots up to max. ø 30 cm.
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
To close the cover, the cast iron pan support can be easily reversed.
Cast iron pan support.
Brass burner rings.
Thermoelectric safety pilot.
Residual heat indication.
Operation indicator.
Special nozzles for natural gas 20 mbar can be ordered as spare parts.
Appliance can be snapped into the worktop from above.

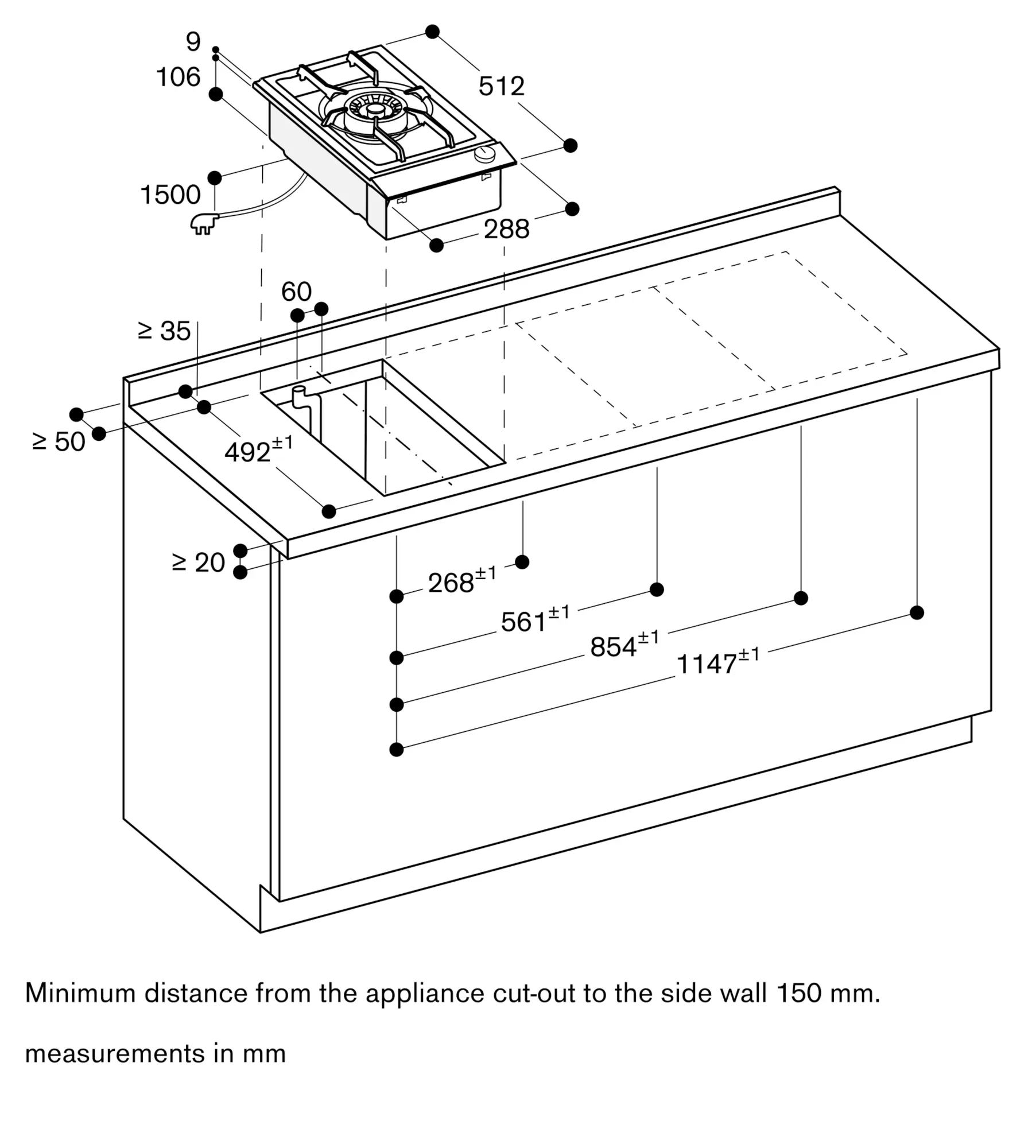

A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
With a total connected load of more than 11 kW local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed.
Appliance weight: approx. 11.
Total connected load gas 5.8 KW.
Total connected load electric 10.0 W.
Connecting cable 1.5 m with plug.
