200 series Vario gas cooktop 30 cm Liquid gas 50 mbar (DE,AT,CH)VG232114
Find a local Dealer
Vario gas cooktop 30 cm Liquid gas 50 mbar (DE,AT,CH)
Technical Overview

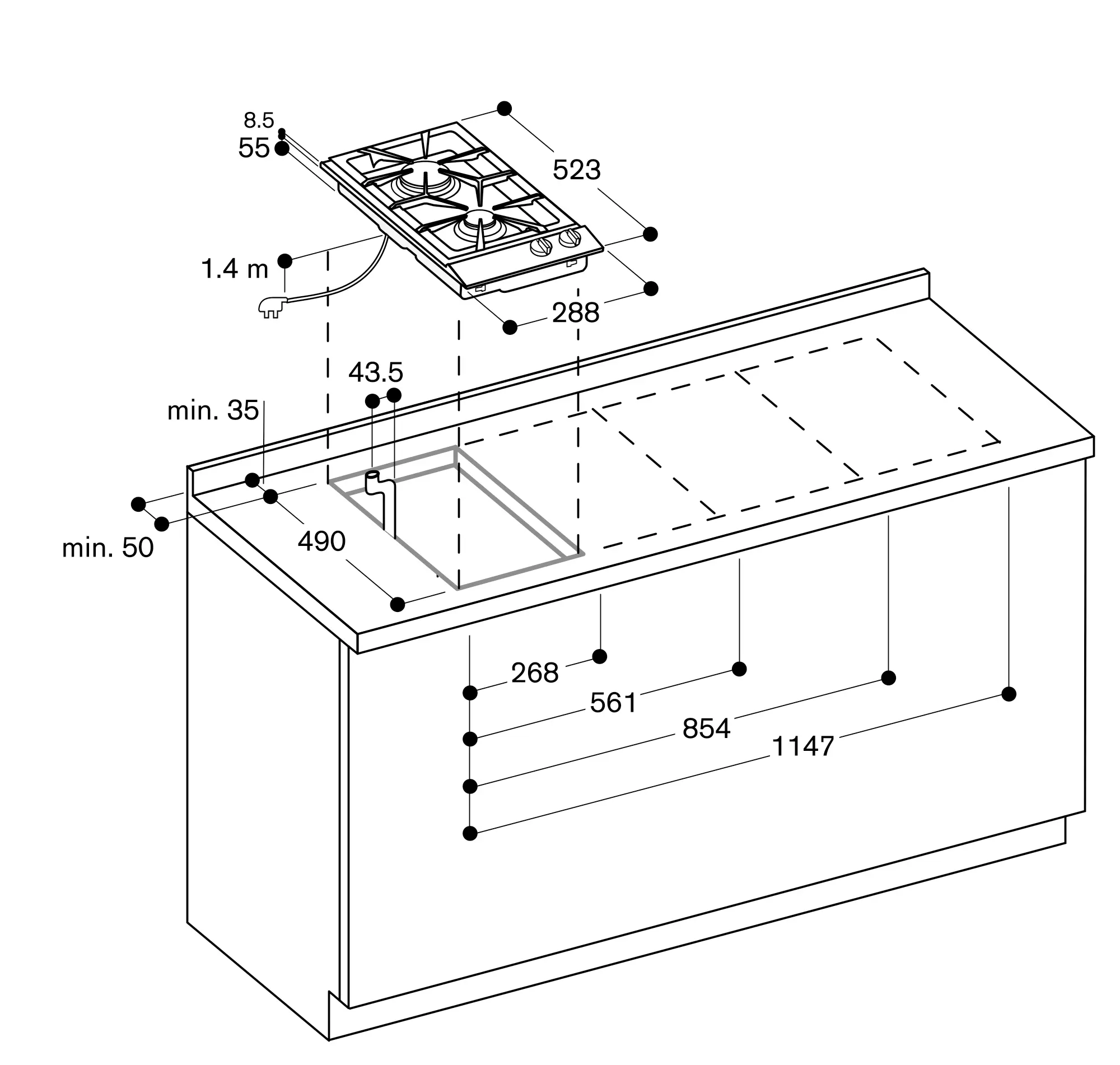

Dimensions (HxWxD)
63x288x52363.5x288x523 mm
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
2
Frame type
Frameless
Special Features
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
Solid smooth-surface cast pan supports for easy and safe positioning of cookware
1 high output burner (560 – 2800 W), suitable for pots up to max. ø 22 cm.
1 standard output burner (380 – 1900 W), suitable for pots up to max. ø 22 cm.
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
Solid smooth-surface cast pan supports for easy and safe positioning of cookware
1 high output burner (560 – 2800 W), suitable for pots up to max. ø 22 cm.
1 standard output burner (380 – 1900 W), suitable for pots up to max. ø 22 cm.
One-handed operation.
Electric ignition.
Cast pan support with continuous pot surface.
Enamelled burner cover.
Thermoelectric safety pilot.
Maximum drawer depth 42 cm.
Appliance can be snapped into the worktop from above.
A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
With a total connected load of more than 11 kW local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed.

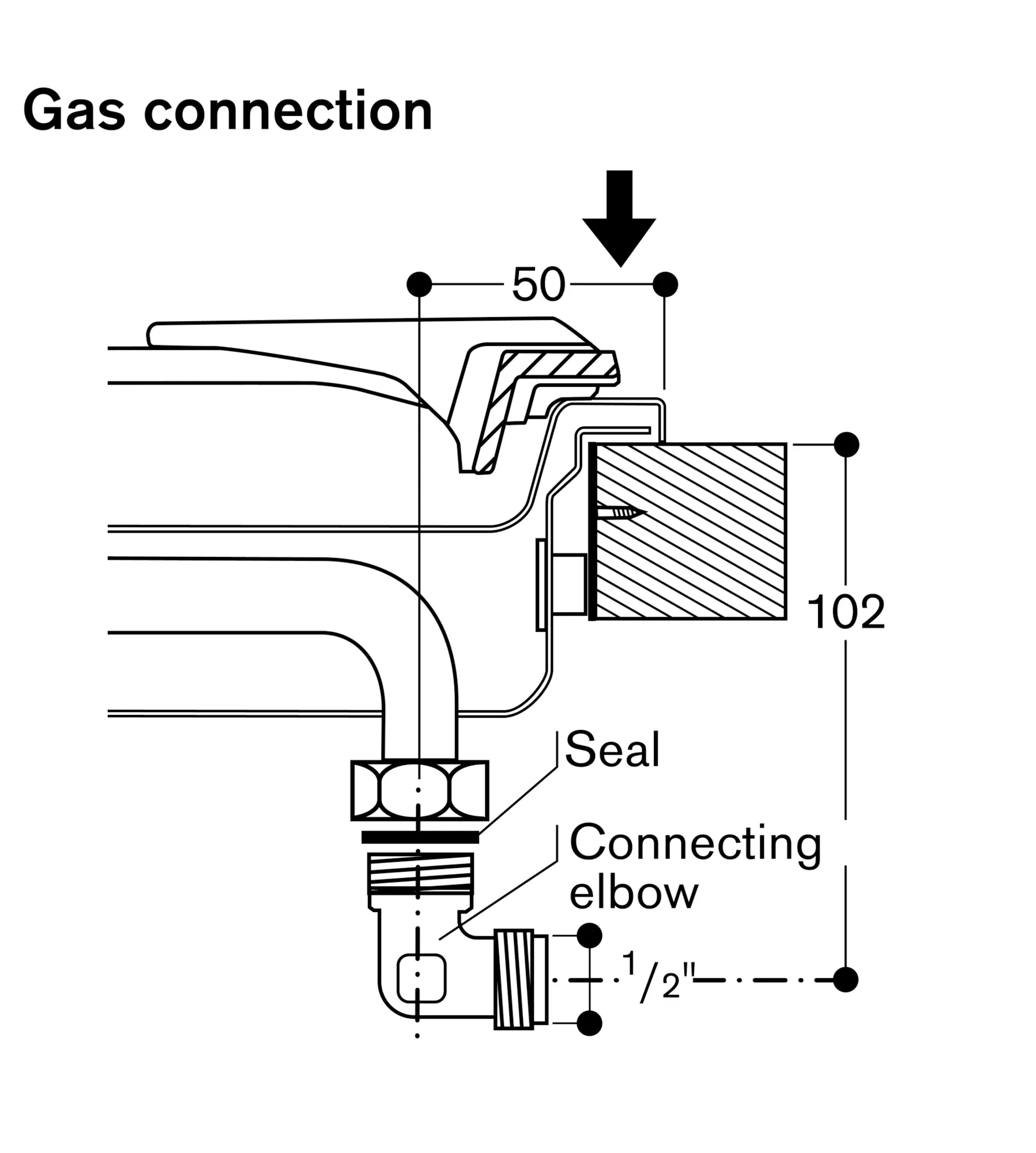

Special nozzles (order 1 of each): Part No. 433603 Natural gas 20 mbar Part No. 419831 Bottled gas 28-37 mbar Part No. 419830 Bottled gas 50 mbar
Appliance weight: approx. 8.
Total connected load gas 4.7 KW.
Total connected load electric 1.0 W.
Connecting cable 1.4 m with plug.
