200 series Vario gas cooktop 60 cm Liquidgas G30,31 28-30/37 mbarVG264120F
1 / 7
200 series Vario gas cooktop 60 cm Liquidgas G30,31 28-30/37 mbarVG264120F
Find a local Dealer
Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
4
Wok burner
No
Gas type
Liquidgas G30,31 28-30/37 mbar
9 precise power levels
Yes
Material of pan supports
Cast iron
Home Connect
No
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Control panel for comfortable and secure operation
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Solid smooth-surface cast pan supports for easy and safe positioning of cookware
Up to 9.8 KW on 4 burners
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
Two-part cast iron pan support with continuous pot surface.
Enamelled burner cover.
Thermoelectric safety pilot.
Residual heat indication.
Operation indicator.
Special nozzles for natural gas 20 mbar can be ordered as spare parts.
No intermediate shelf required.
Appliance can be snapped into the worktop from above.

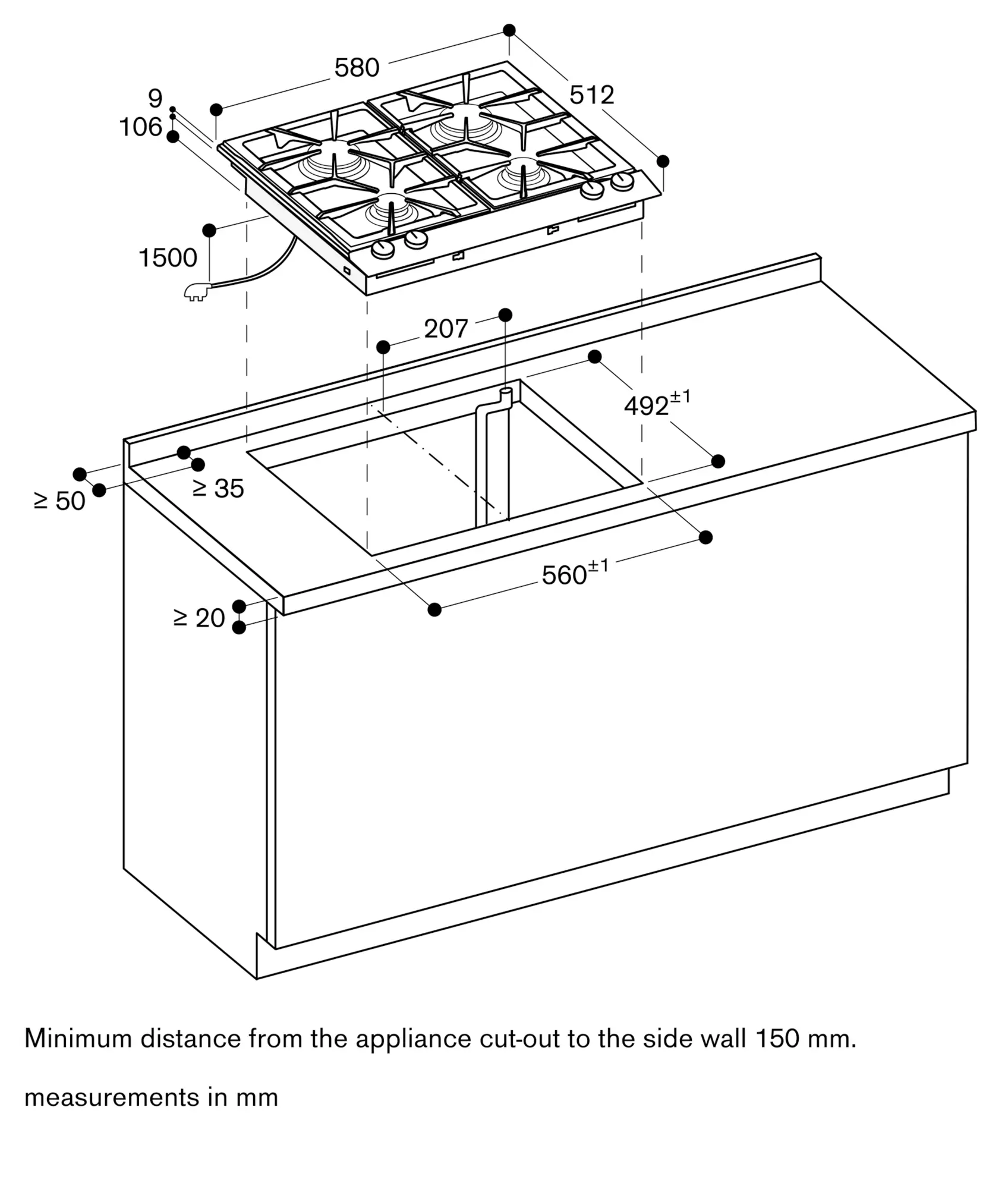

A minimum lateral clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
With a total connected load of more than 11 kW local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed.
Appliance weight: approx. 15.
Total connected load gas 9.8 KW.
Total connected load electric 10.0 W.
Connecting cable 1.5 m with plug.
